Louver

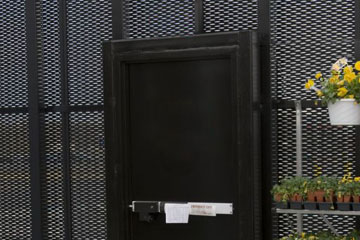

Expanded metal in "louver" form has a variety of applications, mainly as a security barrier, ideal for perimetral fences.

With this application, a higher level of security can be reached, as it can be easily installed with low costs.

In protection applications, this low clear area offers:

  • Anti-climbing
  • Cut resistant
  • Privacy

Using heavy gauges, Louver expanded metal has many applications:

  • Perimetral fences for petroleum or chemical facilities
  • Anti-impact barriers
  • Penitentiary facilities
  • Military
Catalog Opening Size Thickness Strand Width Weight Standard Sheet Size
LCR LLR
In mm In mm In mm In mm Lbs/ft2 Kg/m2 Width SWD Length LWD.
LOUVER MESH 70-20 1.02 25.9 3.00 76.2 0.036 0.91 0.350 8.9 1.0 4.90 0.91 & 1.22 2.44, 3.05 & 3.65
LOUVER MESH 70-18 1.02 25.9 3.00 76.2 0.048 1.22 0.350 8.9 1.34 6.54 0.91 & 1.22 2.44, 3.05 & 3.65
MINI LOUVER 75-14 0.50 12.7 1.20 30.4 0.075 1.90 0.188 4.7 2.30 11.22 1.22 & 1.53 2.44, 3.05 & 3.65
LOUVER MESH 94-16 1.28 32.3 3.00 76.2 0.060 1.52 0.600 15.2 2.30 11.22 1.22 & 1.53 2.44, 3.05 & 3.65
LOUVER MESH 94-14 1.28 32.3 3.00 76.2 0.075 1.90 0.600 15.2 2.90 14.04 1.22 & 1.53 2.44, 3.05 & 3.65
